Performance
■ 1 Mile
(2.km) line-of-sight with
with 938432 or 938438 antenna
■ 3 Miles (5 km) line-of-sight with 938433 antenna
■ 1200. feet (300.m)
in-building range with 938011 antenna
■ Dry isolated contact input N/O
■ Relay output SPDT 10AMP @240V Pilot Duty
Class 2
Installation features
■ Operates in the license-free 433 MHz ISM band
■ Easy installation,
Matched set No programming
required
■ Panel or wall mount

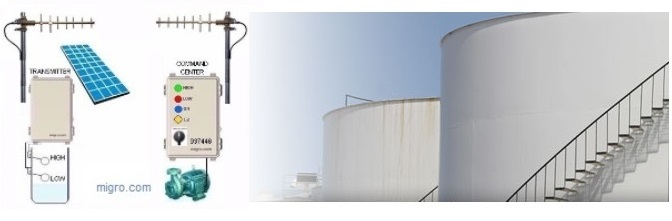

Applications:
Industrial Monitoring, Pump control,
Monitor remote instruments, sensors and
detectors,
Packing and mobile system, SCADA installations,
Factory process control and alarms. |
■
Request a Quotation |
|
|
 |
|
|
|
|
Specifications Digital Transmitter
|
| Supply power |
12 VDC @
400 mA |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
| Connection |
Open wire or
Terminal screws |
| Response |
Loop 500 msec
|
| Weight |
1.8 lb (0.82kg)
each unit |
| Dimensions |
10 x 8 x 4
in. /
250 x 200 x 100 mm |
Antenna
Sold Separately
|
|
Specifications Digital Receiver
|
| Supply power |
12 VDC @
300 mA |
|
Outputs |
Relay 10Amp SPDT 240V Class 2 |
| Frequency |
433 MHz •
License free Industrial |
|
Configuration |
DIP switch factory preset |
| Transmission mode |
Supervised Tx Rx carrier |
| Compliance |
FCC CFR part 15.247 |
| Antenna Z |
50 Ohm SMA connector |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, UL IP65
Fiber |
|
 |
 |
 |
 |
938433
Yagi
Antenna
12 E
14 dBi 3 Mile
Length: 43", Weight:
3.lb
with 10 ft coax cable and
connector
|
938432 Antenna 3 E Yagi
7 dBi 1 Mile
Length: 18", Weight:
1.lb
with 10 ft coax cable and connector
|
938438 Omni 3 dBi Antenna
Length: 37", Weight: 3.lb
with 10 ft coax cable and
connector
|
938011
0 dBi Short range
7" Omni Antenna
5ft coax cable SMA
|
DISCLAIMER:
Radio control equipment
is not to be used in life safety.
Radio control systems
are subject to applications, environmental and atmospheric conditions,
We are not liable of failures on miss applications, radio black outs
or interruption of the transmissions. Radio Installations shall be
performed by a certified professional.
|
