Industrial wireless monitoring and control, 10 Miles (16km) line of sight




PERFORMANCE • 10 Miles ( 16 km ) line of sight w Hi-Gain antenna • Extended range up to 20 km • Encoded 16 bits with 65,536 codes • System is Solar Ready, 12VDC operation • Unlimited transmitter and receivers can be added • Operation Selection: 120/240VAC, 12VDC, or  24V • Transmitter input N/O Dry contact • Relay Output SPDT, 10A @250VAC Class 2 • Heavy Duty Weatherproof, IP65  enclosure • License free operation  MURS band • Factory configured systems, Ready to operate • No setup or programming required • Not limited to line-of-sight communication

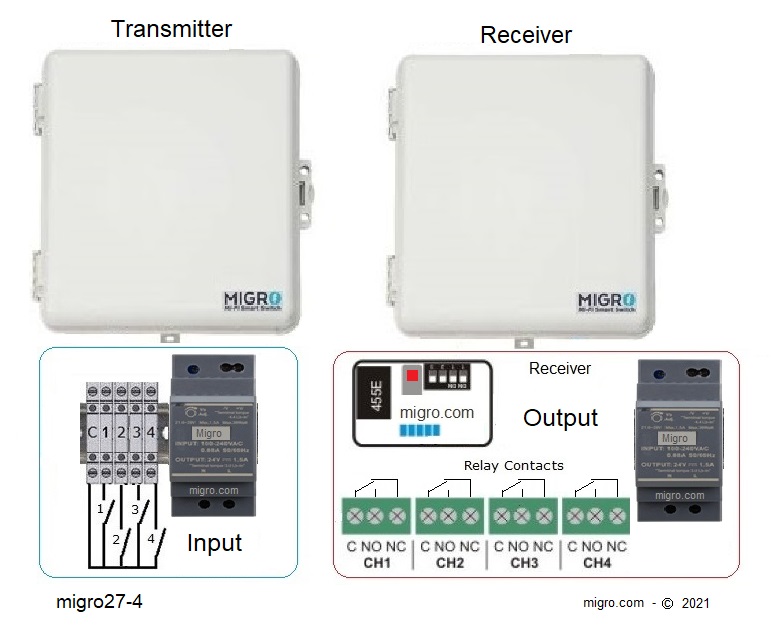

SPECIFICATIONS  Transmitter Input: Dry Contact  Receiver Output  SPDT relay 10Amp, 30/240VAc Class 2  Operation frequency: 27 MHz digital encoded, industrial band  Operating Temperature: -4° to +140° F (-20° to +60° C)  Dimensions 9 x 9 x 3.00 in. / 230 x 230.00 x 100 mm  Operation voltage: 12VDC  Power: Transmitter standby >0.001 mA, energized 2A (1 Sec.),  Short pulse transmission comply MIL standard  Power draw: Receiver standby 30mA, energized 120mA  Antenna 50 ohm,     COMPLIANCE: per FCC Part 15.249,  50mV/m @ 3m Circuit board Compliance with UL796 and UL 94 MIL-STD-461E for Electro-Magnetic Interference (EMI) MIL-STD-901D Grade A for High Impact Shock MIL-STD-167B for Vibration

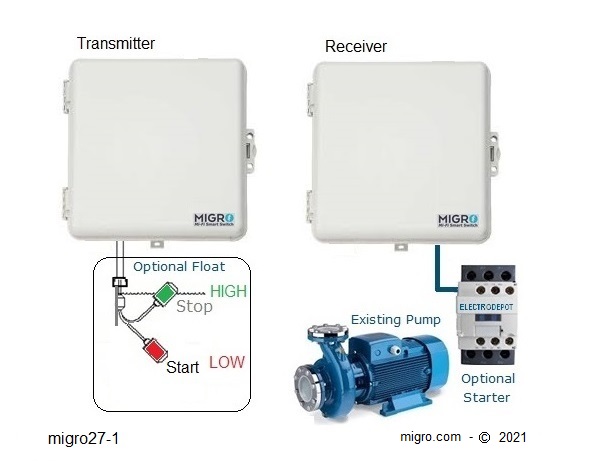

Application:  Industrial Monitoring, Pump control, Monitor remote sites, Tank Level, Lighting control, Remote Mobile system, PLC remote, SCADA, Gates.
Factory process control,  Test and Evaluation equipment, Rocket test, Alarms, Generators,  Solar,  Wire replacement.
